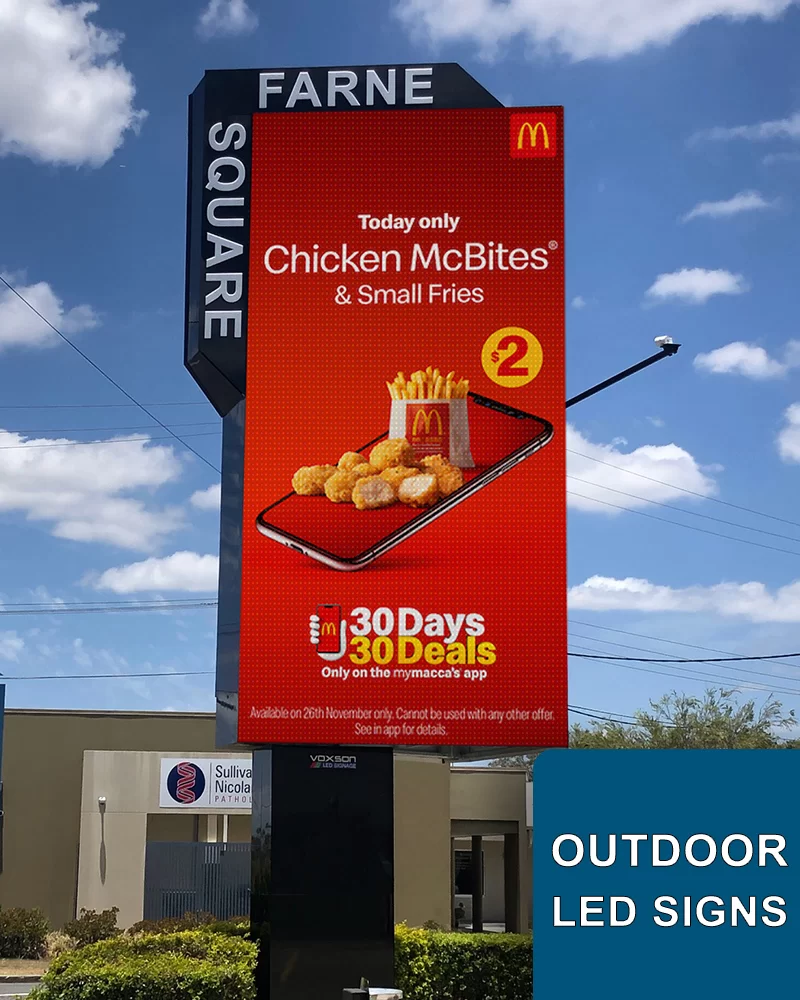

Outdoor LED Signage

Digital LED Signage is the sign the 21st century revolution in printing. Not only is it in visually appealing bright and clear, but the ease to that it takes to change the content in minutes. Why go back to horse and buggy when you can come into the digital revolution and in minutes you can create a full visual promotion for your company.

For the retail industry Voxson has developed a system that allows a single broadcast message or video to hundreds of screens throughout the country or overseas.

Voxson has developed a large range of outdoor displays to suit your specific needs and requirements.

Outdoor Full Colour LED Message Signs and Video boards are available in various sizes, and resolutions.

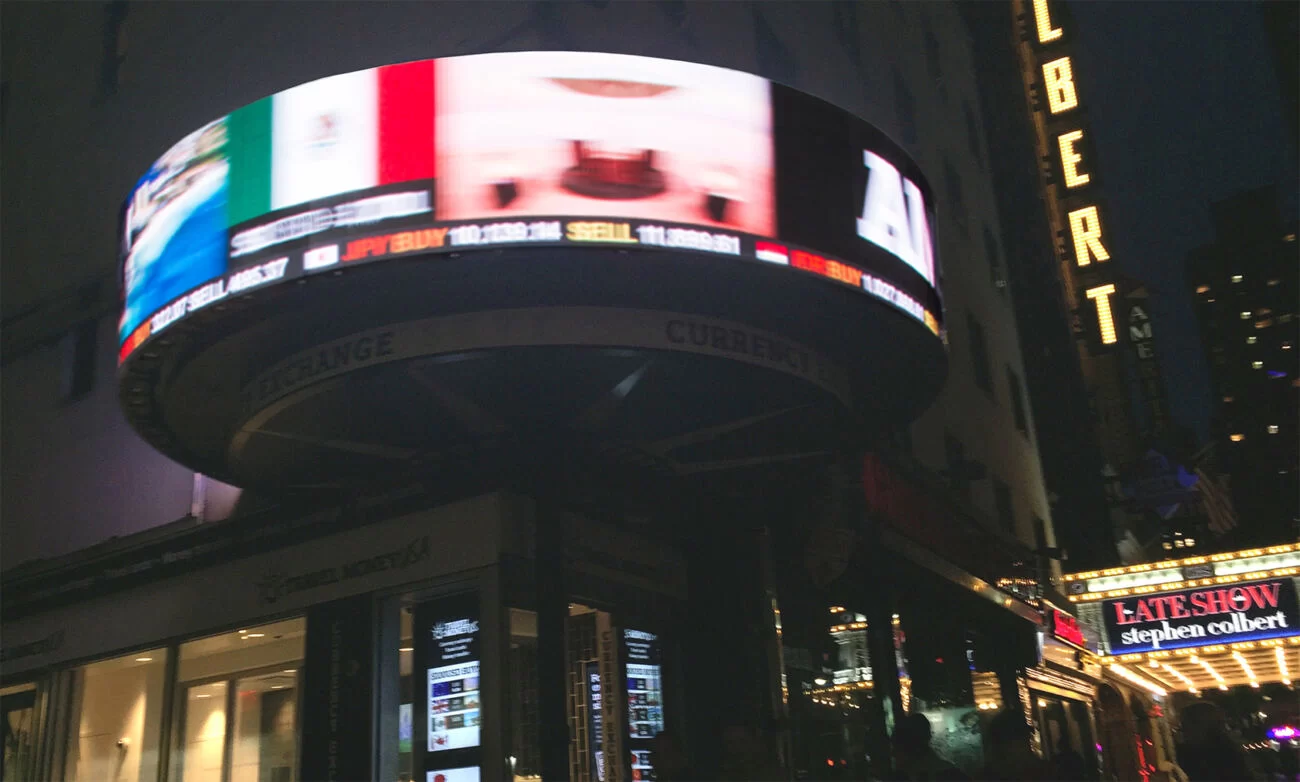

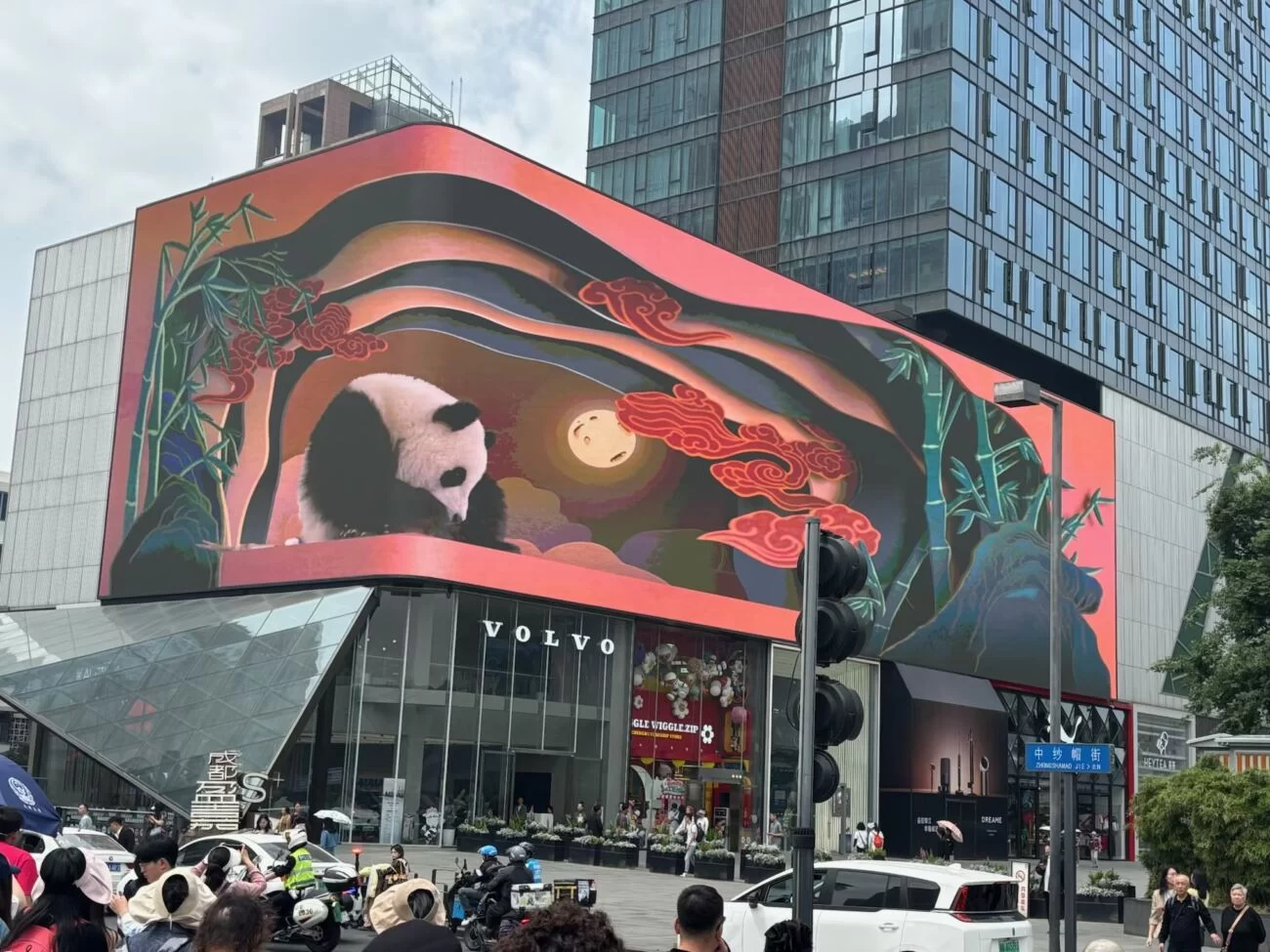

Curved Outdoor LED Sign

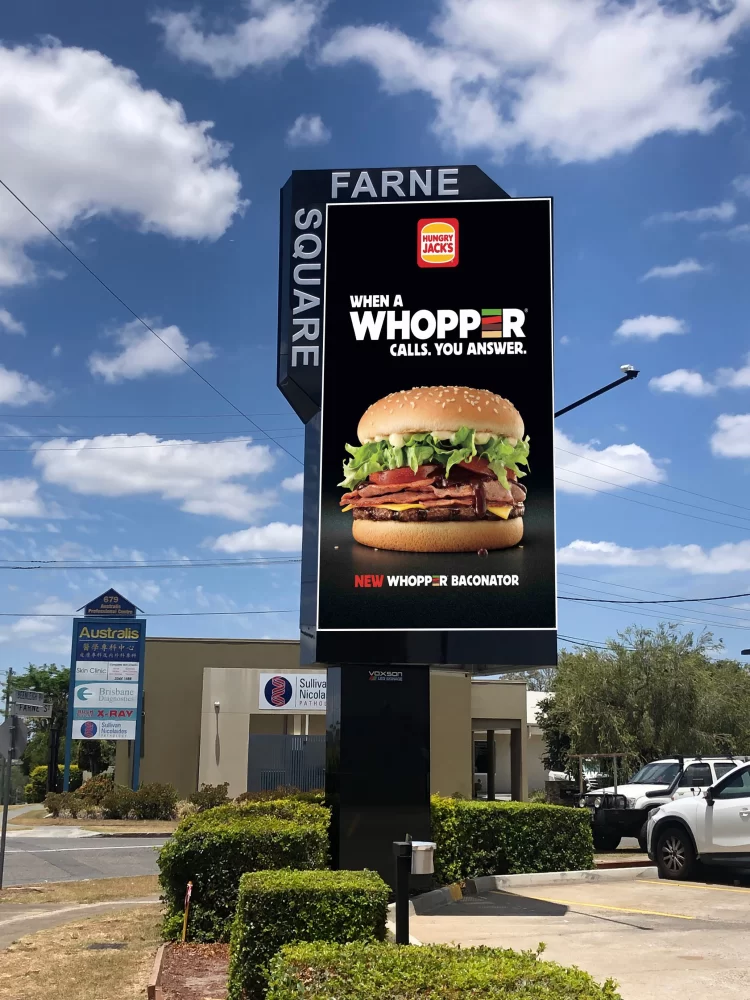

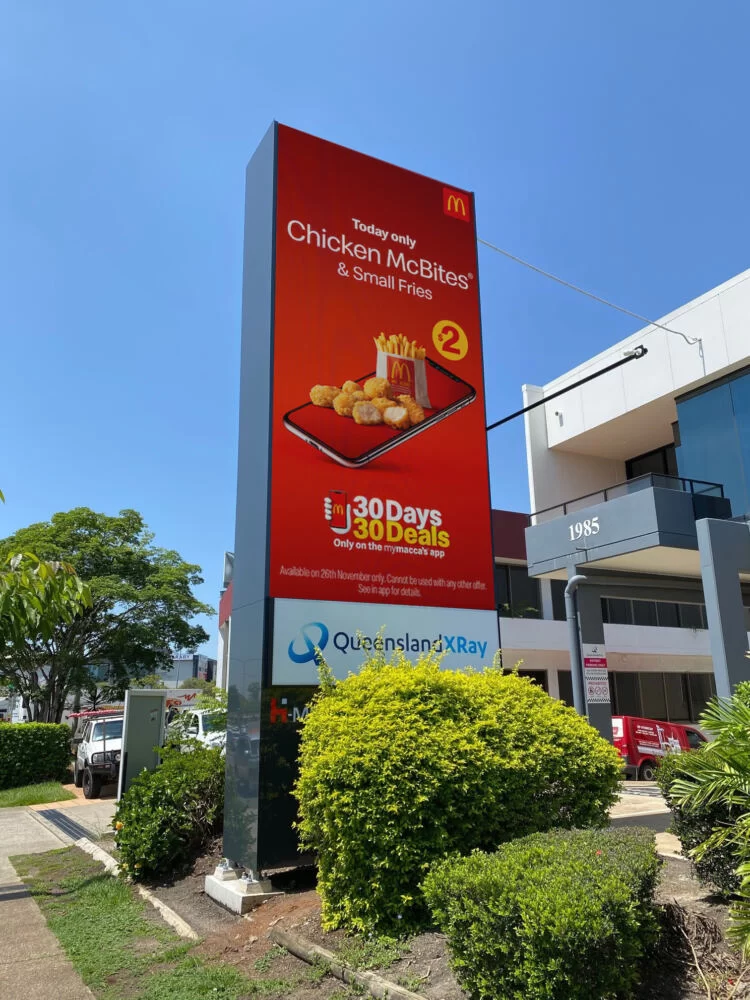

Pylon Mounted
P10 Outdoor Full Colour LED
IMG_2718
Pylon Mounted
P10 Outdoor Full Colour LED

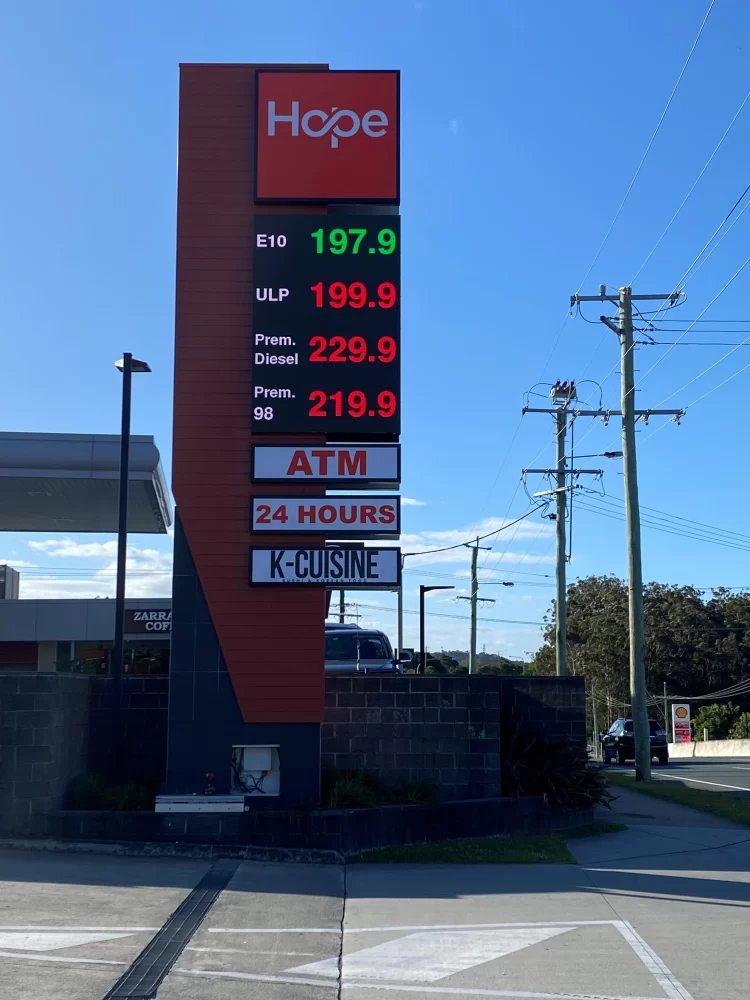

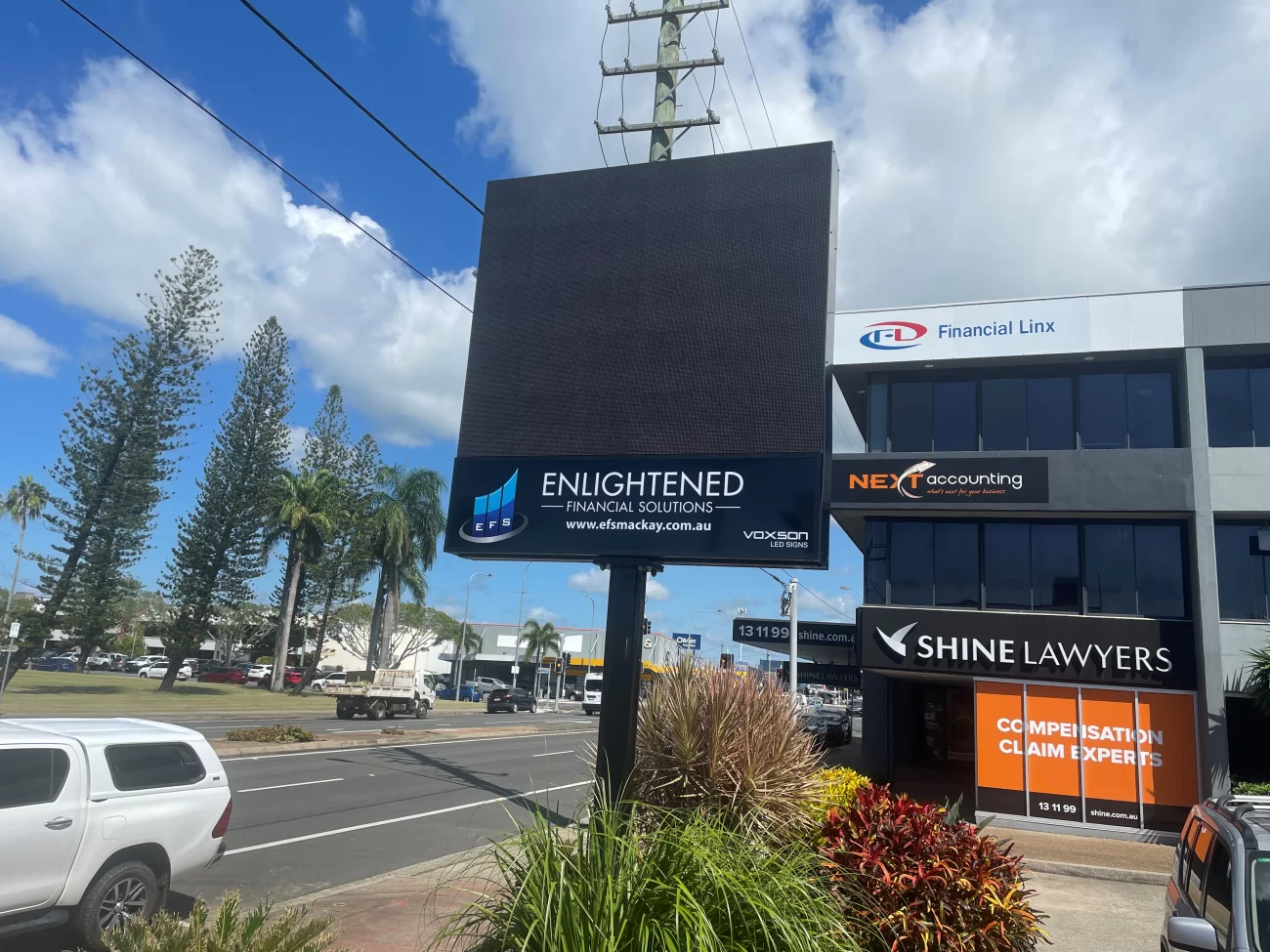

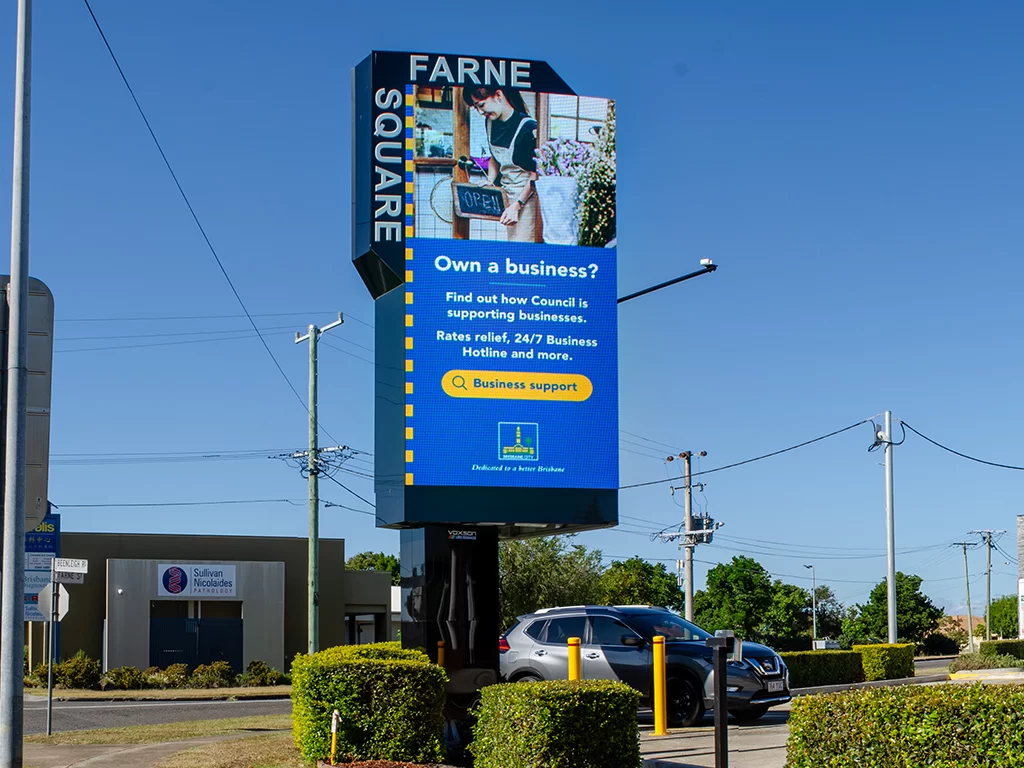

P10 Pylon Sign
Pylon Mounted
P10 Outdoor Full Colour LED

Besides being 10 and 12 times brighter than TV and regular signs they are visible from long distances, user friendly software provides unlimited flexibility to keep messages relevant and up to date so that people will pay attention.

  • Module Specifications
  • Features
  • User Friendly Software
  • Control
  • Cabinet

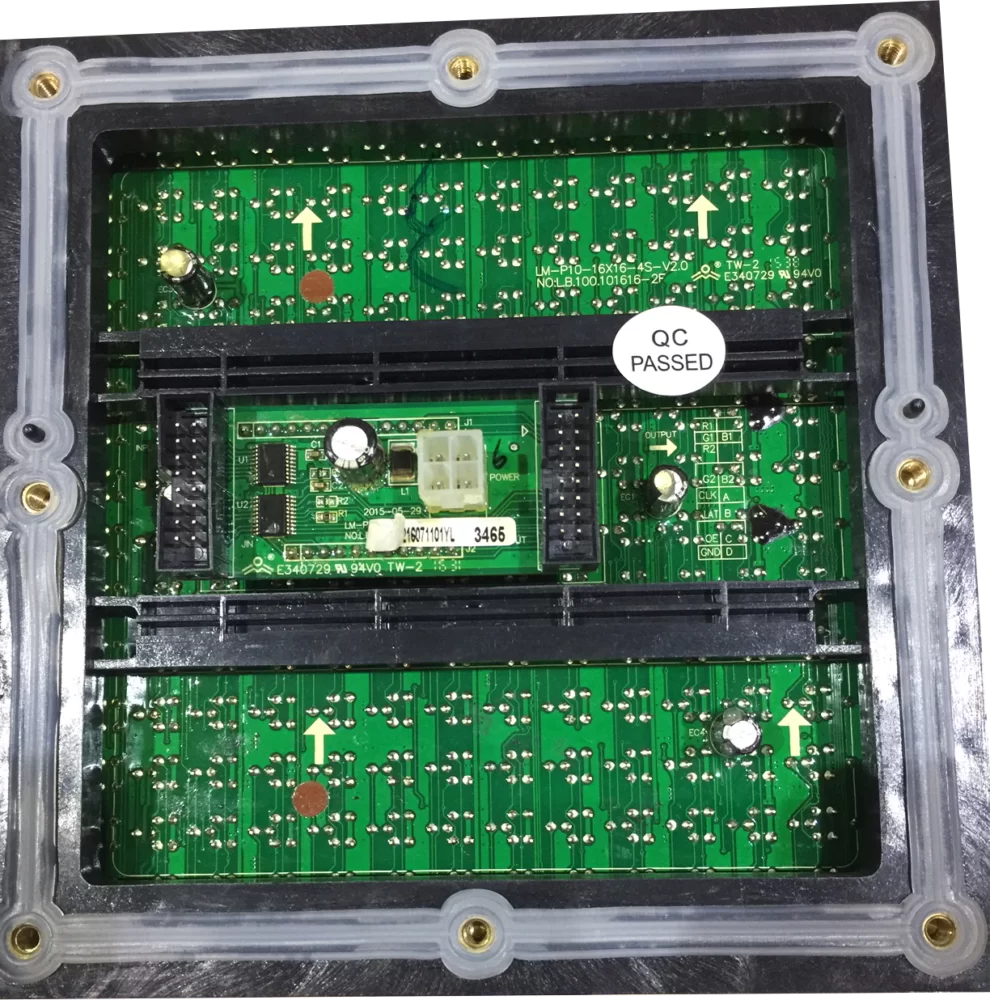

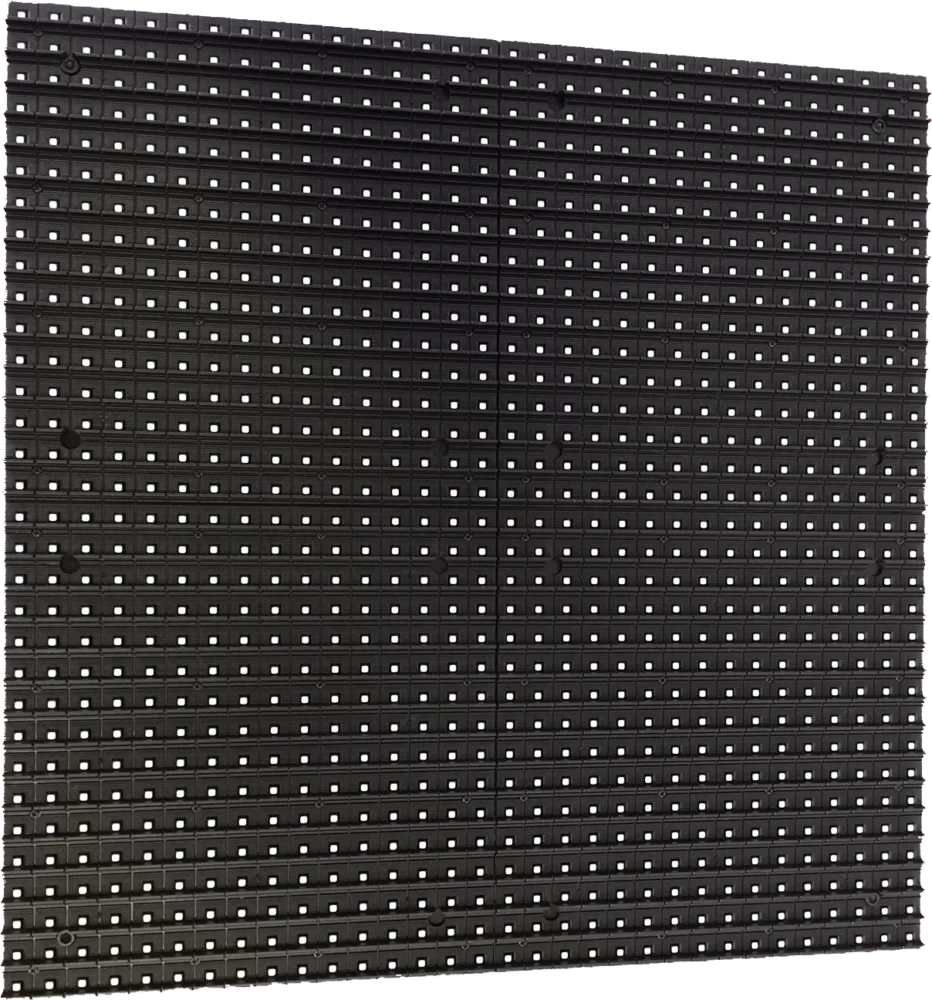

Specification Unit P6.67 P8.5 P10 P16 P20
Pixel Pitch mm 6.67mm 8.5mm 10mm 16mm 20mm
Pixel density dots/sqm 22,477 13,841 10,000 3,906 2,500
Pixel dots 48 x 48 16 x 32 16 x 16 16 x 8 16 x 8
Size per module mm 320 x 320 136 x 272 160 x 160 256 x 128 320 x 160
LED type SMD SMD DIP DIP DIP
Brightness nits (cd/sq.m) <6,000 ≥6,000 ≥6,000 5,500 – 7,000 5,000 – 7,000
Drive type ¼ Scan ¼ Scan ¼ Scan Static constant Static constant
Viewing angle Horizontal deg. 120° 140° 120° 130° 130°
Viewing angle Vertical deg. 100° 140° 60° 60° 60°

  • Ultra Bright LED’s 10 and 12 times brighter than other methods
  • Very fast refresh rates allow crisp and clear visuals
  • Sun shades over each pixel
  • Front/Rear service access as standard
  • Robust enclosure
  • Automatic day or night dimming
  • Programmable via our easy to use web based software
  • Various character heights
  • Simple graphics (jpeg or bmp)
  • Real time display
  • Automatic Brightness control
  • Built in scheduling
  • Messages can be changed instantly from a remote location via wireless technology.
  • Front and Rear access cabinets available*
  • Fabricated water proofed aluminum enclosure
  • IP65 rated cabinets
  • Quality finish





*subject to installation area and suitability.

* Features and Specifications are subject to change without notice.
