Voxson Radar Speed Signs

Radar Traffic LED Signs

Radar speed signs are an effective traffic solution to help reduce speed and enables Drivers to become aware of speed reductions on Public and Private Roads. Research demonstrates that when a Driver is alerted by a radar sign, speeding Drivers typically slow down. Radar Signs Show decline in Speed. Call 1300 215 400 for a quote.

The Radar Traffic LED Sign has the proven ability to influence driver behaviour, reduce speeding and draw attention to local limits. Voxson’s range of Radar Traffic LED Signs include models offering standard speed indication devices, as well as models offering the more sophisticated data collection systems and dual display options. When used by experienced operators the Voxson traffic counter can also provide valuable, flexible data collection for traffic management applications. This is an industrial-grade product manufactured to last for many years.

The Voxson Radar Speed sign incorporates the AGD radar sensor which is manufactured in the UK and is Australian Compliant.

Voxson has chosen the AGD radar sensor due to its capabilities and unlike traditional Continuous-wave (CW) Doppler radar for sign driving applications which have no ranging capability, the AGD has a full multi-target acquisition platform, accurate target range determination and fast update rate.

Voxson’s Radar Traffic LED Signs have been specifically designed to offer a range of radar speed indication and road traffic monitoring features, which can be used by the police, local councils and private companies.

(If your requirements differ from the product specifications below please call us on 07 3268 0700 as we are able to customize a product to suit your needs.)

SPECIFICATIONS – (STANDARD OR ADVANCE MODEL)

  • Full matrix SMD LED’s with optical LEN’s
  • Pixel Pitch: P20
  • Screen size: 480 x 480mm
  • Screen resolution: 24 x 24 pixels
  • Brightness: 6000 nits
  • Brightness levels: 16 (automatic control)
  • Power: 12V DC (240V AC version also available)
  • Display different messages for speed areas (e.g. SLOW DOWN)
  • Display simple graphics (e.g. SMILEY FACE)
  • Communications by RS232 & Ethernet (STANDARD)
  • IP65 rated
  • Weight: (standard kit may not include all items)
    •  Cabinet (no battery) 18KG
    • Battery (per battery) 16KG
    • Solar Kit (bracket & panel) 22KG
    • Reflective Safety Panel 5KG

FEATURES

  • Vehicle activated
  • Variable trigger speeds
  • Variable over speed message
  • Variable correct speed & image

ADDITIONAL SIGN OPTIONS – (STANDARD OR ADVANCE MODEL)

  • Solar panel & Solar Charger
  • Extra deep cycle battery
  • 240V Powered unit

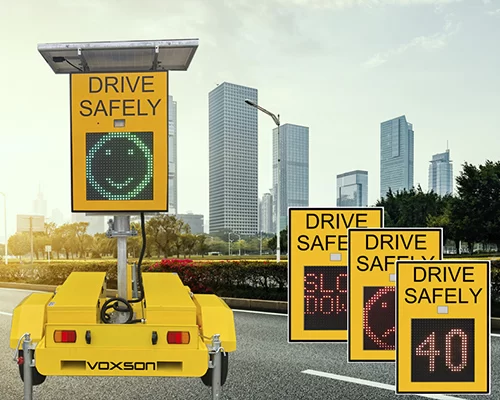

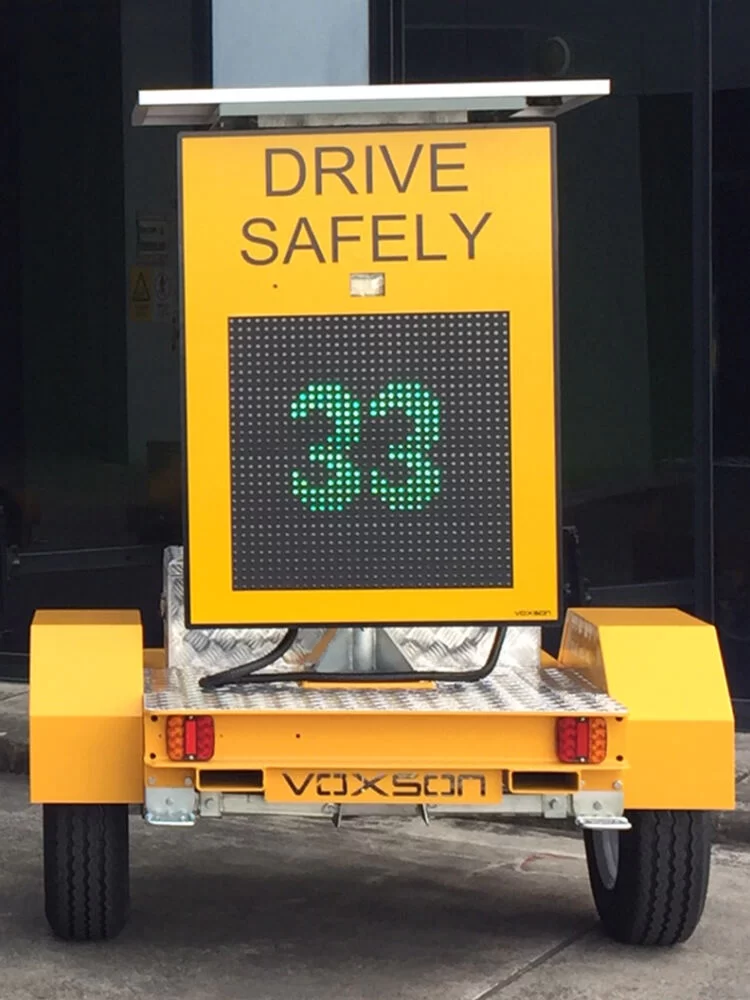

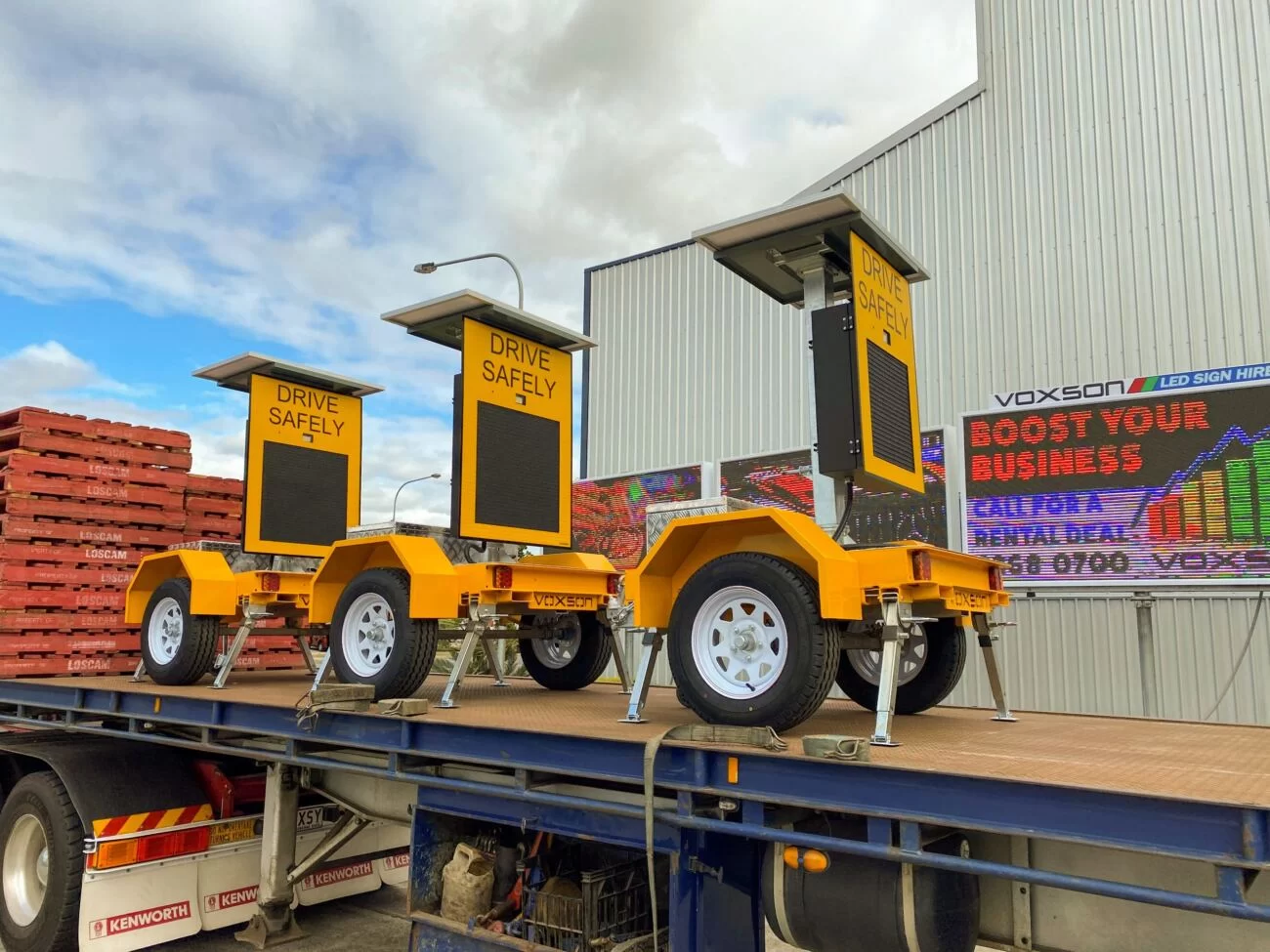

  • Mobile trailer option

MODEL NUMBER:

  • SAS20-484
  • SAS20-484-ADVANCE

RADAR DETECTION SPEED – (STANDARD & ADVANCE MODEL)

DETECTION SPEED:
1) 11 – 160kph – AGD RADAR (Radar Type: Advanced Pulsed FMCW)
2) 08 – 200kph – AGD RADAR (Radar Type: CW Doppler Radar)
3) 1.1 – 300kph – HOUSTON (Radar Type: K-Band Doppler)

CONNECTIVITY – ADVANCE MODEL ONLY

  • USB
  • BLUETOOTH LOW-POWER (compatibility with Windows 7 and above)
  • WI-FI / ETHERNET (LAN) / IP
    Supported IP methods WI-FI (peer to peer), ETHERNET or 3G/4G with additional modem

ADVANCE MODEL SOFTWARE OVERVIEW

MAIN SCREEN

EASY TO USE SOFTWARE APPLICATION

  • Easy access to key features using the simply to use software package.
  • Easy to use connectivity via Wi-Fi (IP), Bluetooth LOW-POWER* & USB
  • Advance scheduling (day of week, time and date based)
  • Holiday scheduling options
  • Downloadable radar logs

PLAYLIST

PLAYLIST features (image or images to be played as per scheduling or default rule set)

  • Drag and Drop playlist creation
  • Manage bitmap display time (from 0.1 to 9.9s)
  • Load multiple bitmaps in one playlist
  • Import bitmap images from application via import folder

RULES

RULES (one rule by scheduling and one playlist by default)

  • Correct speed (image or images with (speed displayed in GREEN optional))
  • High speed (image or image with (speed displayed in RED optional))
  • High speed cut-off (image or images only, no speed displayed)

SCHEDULE

ADVANCE SCHEDULING OPTIONS
Supported scheduling options

  • Data range
  • Day range (Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday)
  • Holiday scheduling (custom rules for holiday periods)
  • Time (using a combination of the above rules)EG: whole day or 7am to 9am.
Radar Log Analytics Tool

ANALYTIC TOOL
OVERALL STATISTICS

Easy to view analysis of radar logs using the easy to use analytics tool.

Analysis Data that is included in the analytics tool.

  • Number of detected vehicles
  • Oncoming & Outgoing cars
  • Date of data files Last & First date
  • Number of detected vehicles above and below the set speed
  • Number of vehicles by day of week including average and max average
  • Average & Max Average speed of detected vehicles
  • Breakdown of speed ranges by number of vehicles
  • Detected vehicles counted by day

ANALYTIC TOOL
TOTAL VEHICLES COUNTER

PRODUCT INFORMATION & USER GUIDES

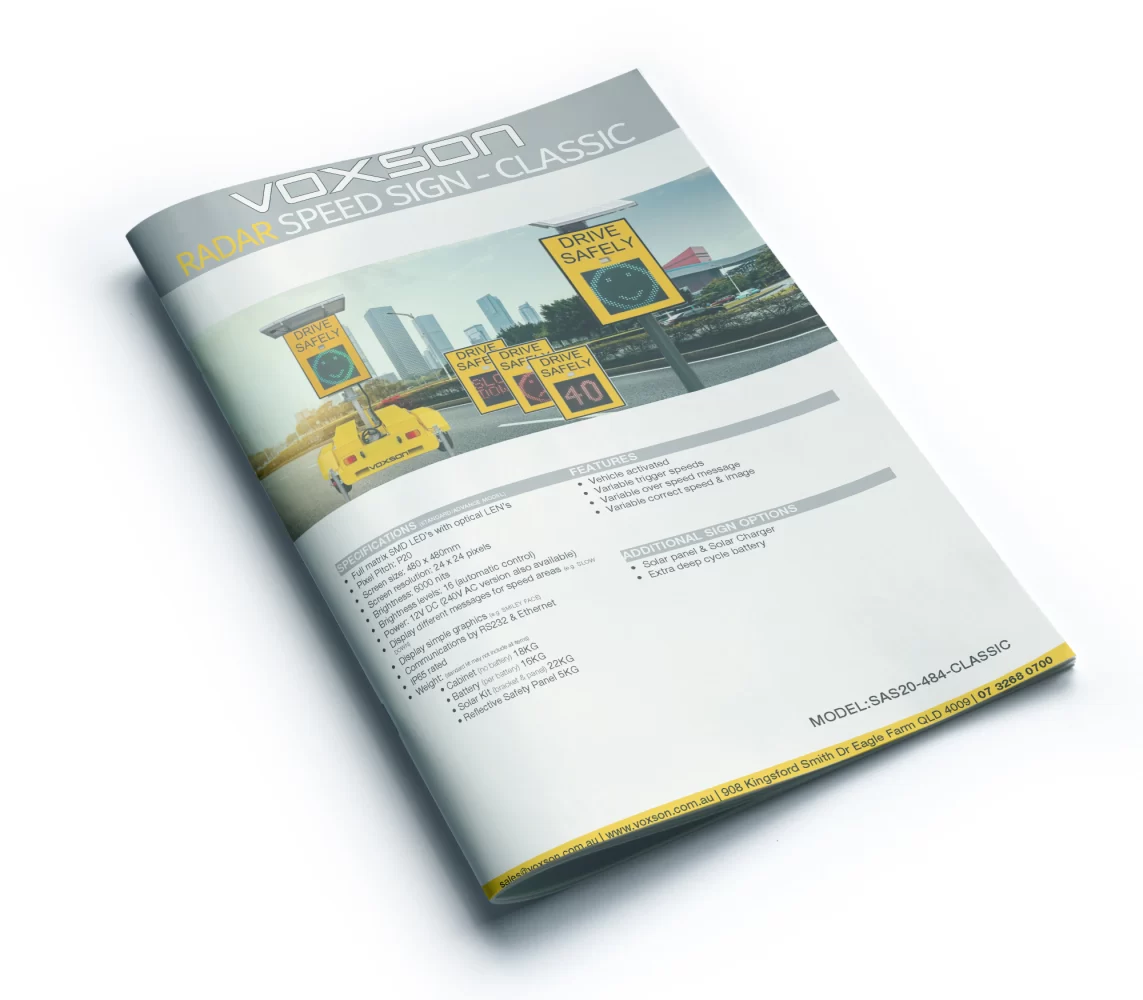

Radar Speed Sign Flyer
AGD Radar User Guide

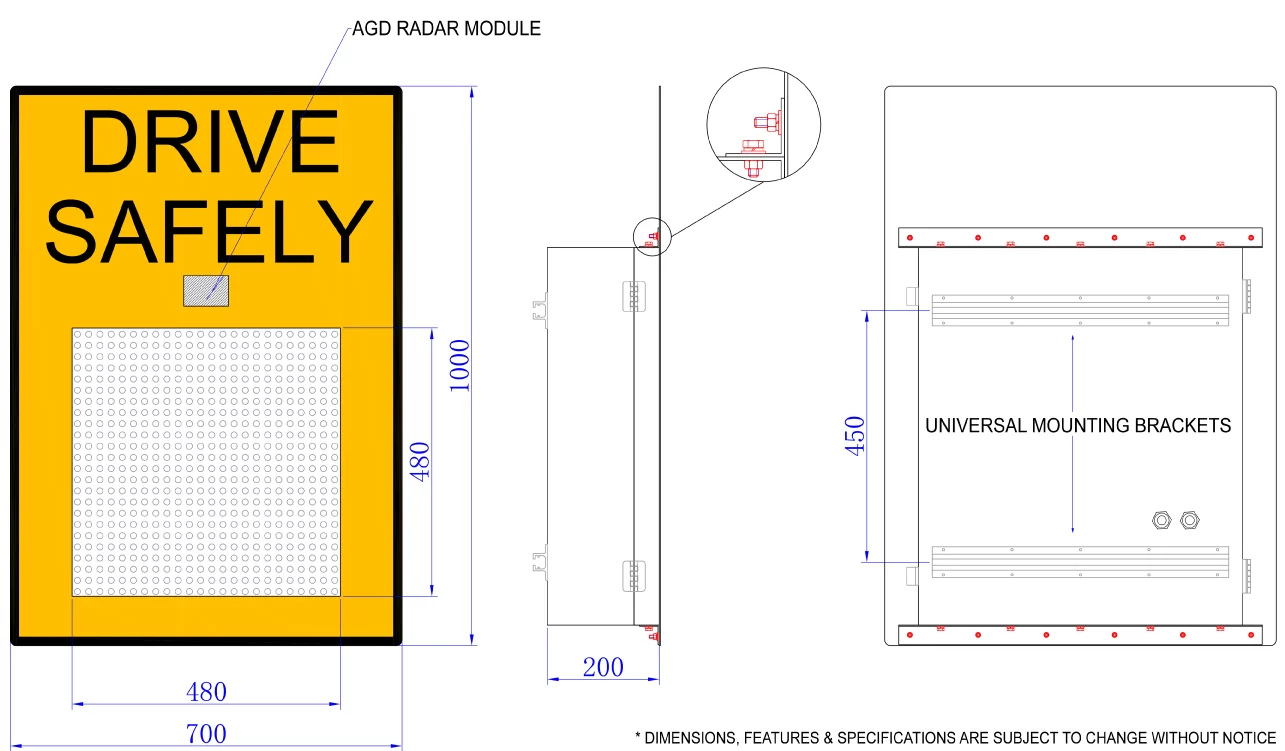

PRODUCT DIMENSIONS

MAKE THE ROADS SAFER
Voxson’s Radar Traffic LED Sign is the ideal solution to making the roads a safer place. On top of reducing traffic speeds on the road the radar traffic sign also gives you the opportunity to collect valuable speed and traffic density data which can help improve the safety of the road in future.

Voxson’s Radar Traffic LED Sign is used to alert the driver when they are over the speed limit and to acquire traffic density and traffic statistics. It is a perfect solution for:

  • Schools, kindergartens and child care centers
  • City centers
  • Rural speed zones and town areas
  • Dangerous road sections


Voxson’s Radar Traffic LED Sign is an ideal solution for:

  • Reducing drivers’ speeds and preventing accidents on busy roads
  • Providing statistics on vehicle counts and speed information

.


.

Want to find out more? Contact Us Today on (07) 3268 0700. Alternatively fill out the contact form below:
