V4S – P10 Solar Powered Full Colour Mobile LED Sign

V4S Full Colour P10.66 Solar Powered Mobile LED Sign

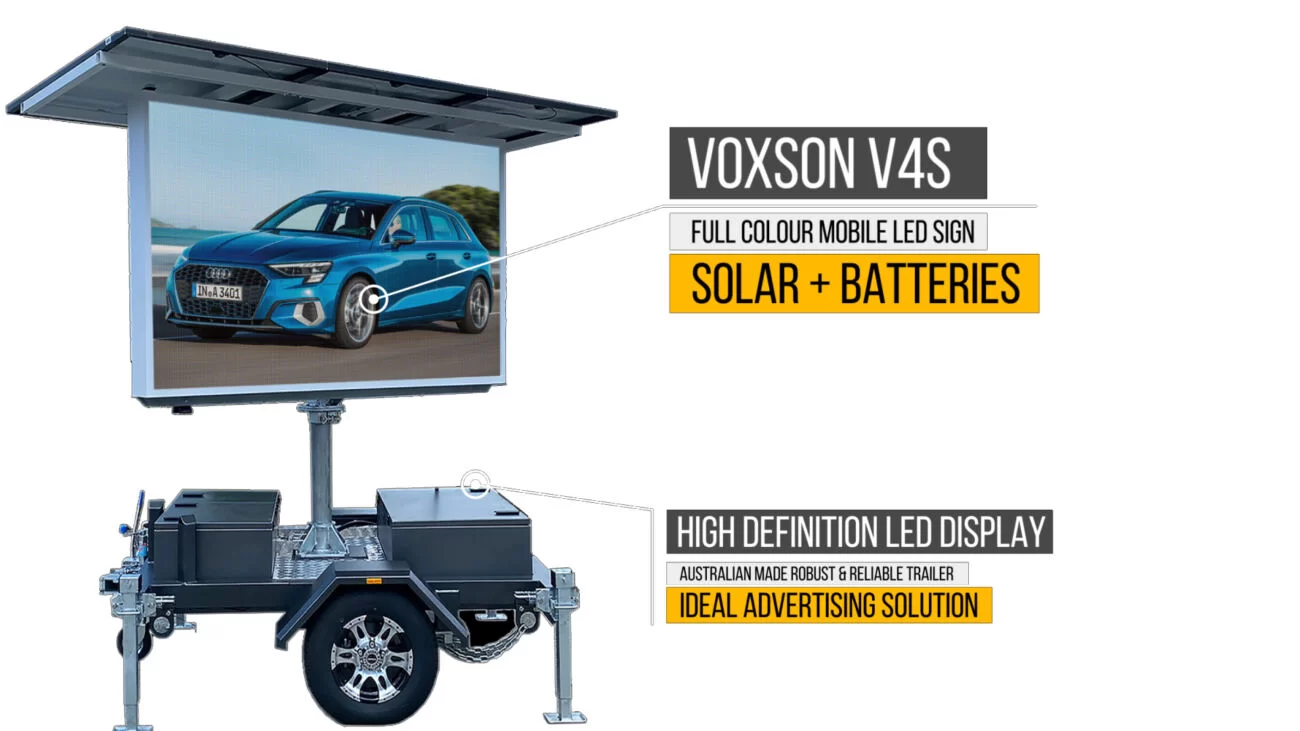

The V4S LED screen has been successfully developed by utilizing smart advanced techniques to operate a higher definition LED screen. The V4S is equipped with a content management system to load hundreds of advertisements which can be programmed and displayed according to your requirements. The Voxson V4S can also display Video presentations, TV (via a set top box) and live feeds.

A typical Full Colour LED screen draws high power and therefore will not operate unless it is plugged into a 240 Volt power outlet.

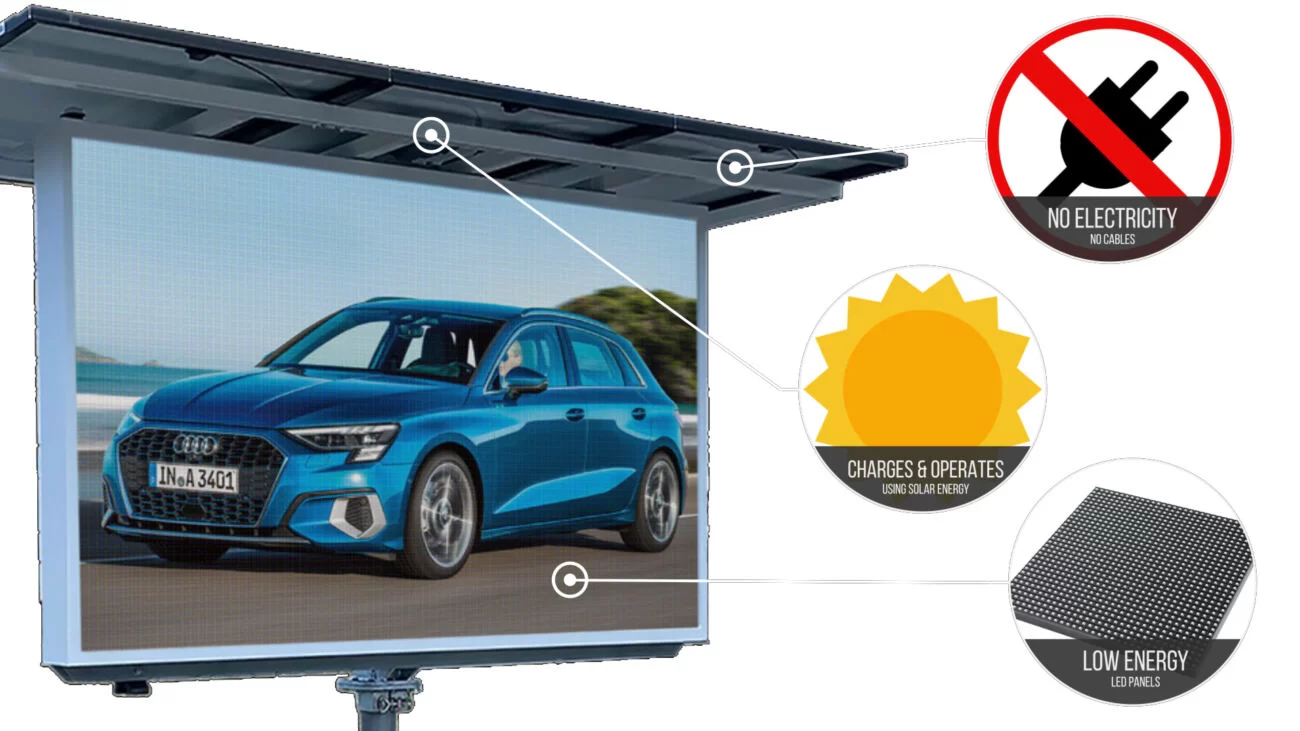

The estimated run time is 7 x 10 hour days without Solar charging. Depending on the amount of continuous sunny days, we expect continuous operation throughout summer and close to that during other seasons, however it is going to depend on the number of continuous overcast days. If this is the case you made need to recharge the batteries from time to time.

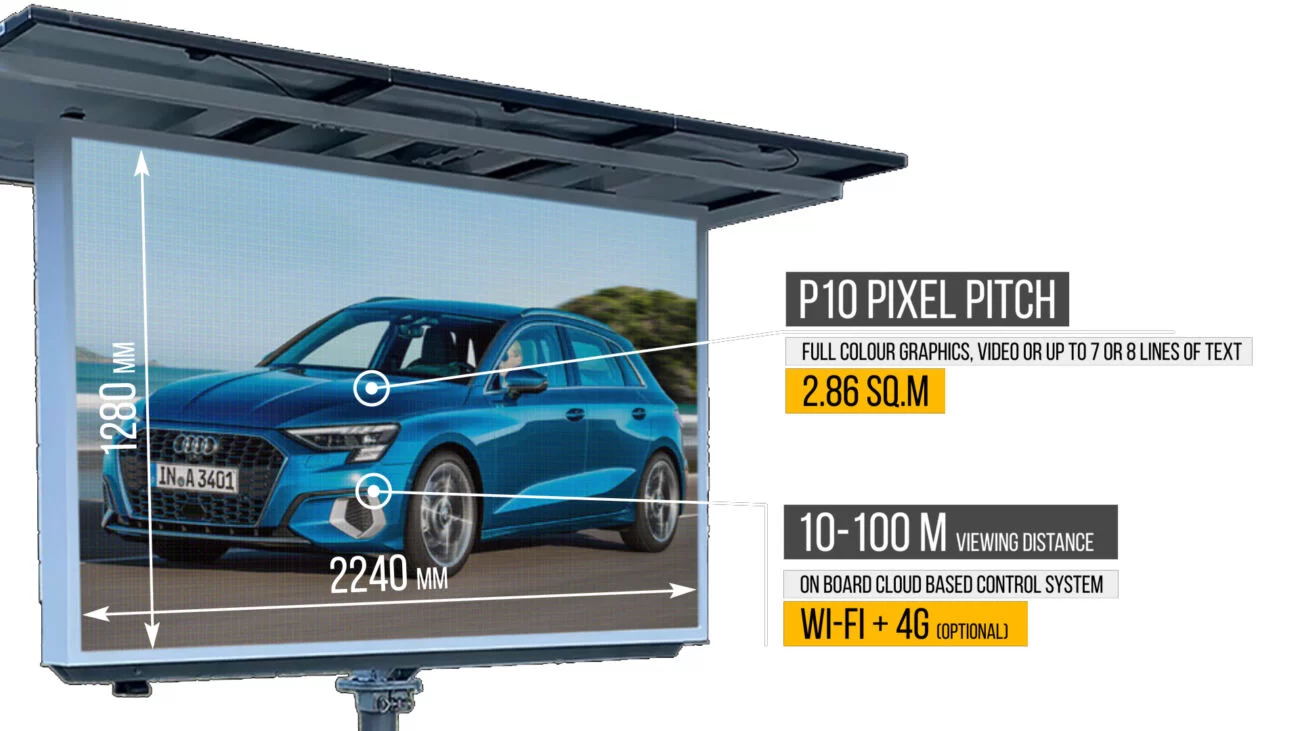

  • Screen Size: 2240mm Wide x 1280mm High
  • Screen Resolution: 210 x 120 | Aspect Ratio: 16:9
  • Screen Refresh Rate: 1920hz
  • Module Type: 320mm x 320mm self cooling/waterproof
  • Pixel Pitch: P10.66
  • LED Type: DIP with gold wire bonded LED chips
  • Colour Range: 281 Trillion colours
  • Display Capabilities: Full Colour video and graphic display
  • Viewing Angle:110º horizontal, 60º vertical | Rotatable: 360º
  • Viewing Distance: 10m – 100m
  • Cabinet: custom built aluminium cabinet with 2 doors for maintenance
  • Brightness: 5000nits high brightness for outdoor use

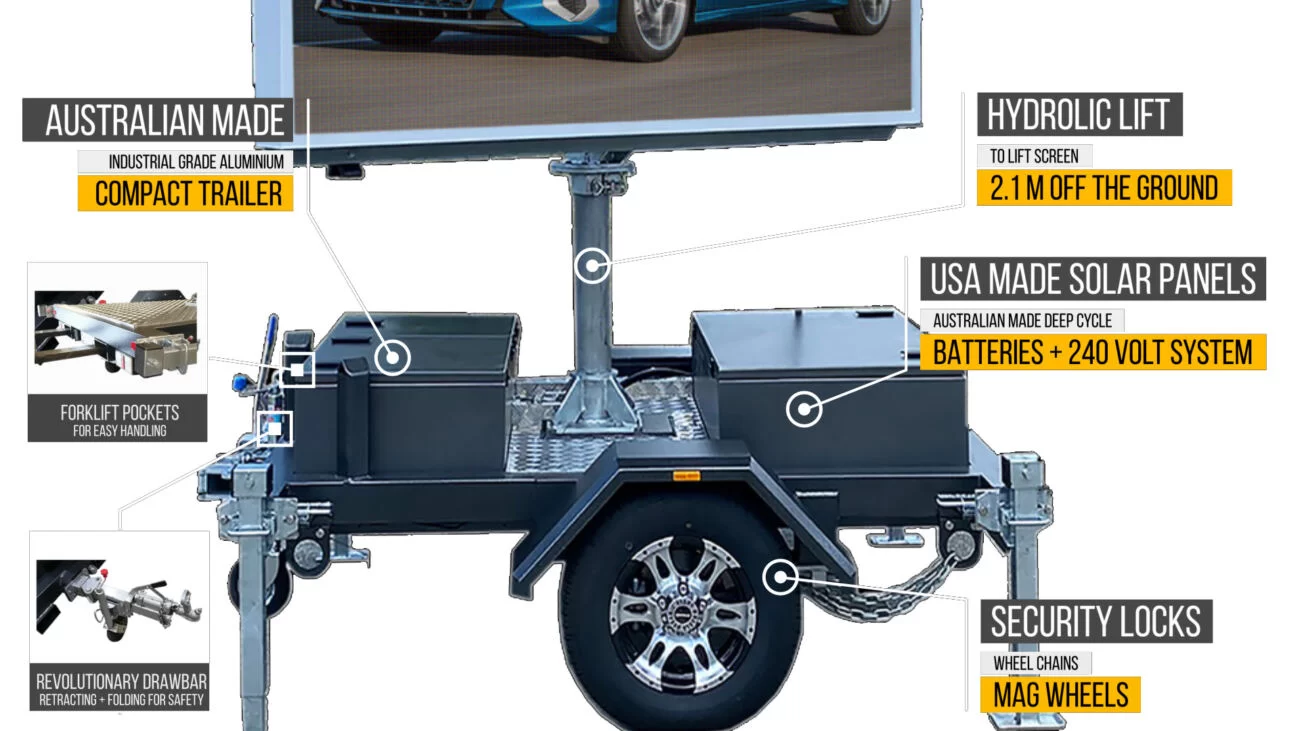

  • Trailer Size: ( L x W x H)
    • Stowed: 2950mm x 1970mm x 2550mm
    • Extended: 3890mm x 1970mm x 3480mm
  • Battery powered with mains backup (240V 10amp)
  • Retractable draw bar
  • Hot DIP galvanised / Aluminium Trailer Frame
  • Forklift pockets
  • Wheel chains / security locks
  • Hydraulic mast height adjustment
  • LED tail lights
  • MAG Wheels
Download – V4S Product Flyer


  • CMS System: ONELAN (optional) or NOVA
  • Communications: 4G Modem
  • Web based content management
  • Remotely programmable via internet
  • Wide range of supported file types
  • Video (AVI, MPEG, WMV, MP4)
  • Image (BMP, JPG, PNG, GIF)
